Online Unsupervised Learning of Visual Representations and Categories

Self-supervised learning methods discover rich and informative visual representations without class labels. Instance-based approaches aim to learn invariant representations of each image under different transformations (van den Oord et al., 2018; Misra and van der Maaten, 2020; Tian et al., 2020; He et al., 2020; Chen et al., 2020a, b; Grill et al., 2020; Chen and He, 2021). They typically work well with iid data and large batch sizes, which contrasts with realistic learning scenarios. Our method is also related to clustering-based approaches, which obtain clusters on top of the learned embedding and use the cluster assignments to constrain the embedding network. To compute the cluster assignment, DeepCluster (Caron et al., 2018; Zhan et al., 2020) and PCL (Li et al., 2021) use the $k$-means algorithm whereas SeLa (Asano et al., 2020) and SwAV (Caron et al., 2020) uses the Sinkhorn-Knopp algorithm (Cuturi, 2013). However, they typically assume a fixed number of clusters, and Sinkhorn-Knopp further assumes a balanced assignment as an explicit constraint. In contrast, our online clustering procedure is more flexible: it can create new clusters on-the-fly with only a single new example and does not assume balanced cluster assignments. Self-supervised pretraining or joint training has proven beneficial for online continual learning tasks (Zhang et al., 2020; Gallardo et al., 2021; Cha et al., 2021).

There has also been a surge of interest in leveraging video data to learn visual representations (Wang and Gupta, 2015; Pathak et al., 2017; Orhan et al., 2020; Zhu et al., 2020; Xiong et al., 2021). These approaches all sample video subsequences uniformly over the entire dataset, whereas our model directly learns from an online stream of data. Our model also does not have the assumption that inputs must be adjacent frames in the video.

Our work is also related to online and continual representation learning (Rebuffi et al., 2017; Castro et al., 2018; Rao et al., 2019; Jerfel et al., 2019; Javed and White, 2019; Hayes et al., 2020). Continual mixture models (Rao et al., 2019; Jerfel et al., 2019) designate a categorical latent variable that can be dynamically allocated for a new environment. Our model has a similar mixture latent variable setup but one major difference is that we operate on example-level rather than task-level. Streaming learning (Hayes et al., 2019, 2020) aims to perform representation learning online. Most work here except Rao et al. (2019) assumes a fully supervised setting. Our prototype memory also resembles a replay buffer (Buzzega et al., 2020; Kim et al., 2020), but we store the feature prototypes instead of the inputs.

Our model also relates to a family of latent variable generative models for sequential data (Krishnan et al., 2015; Johnson et al., 2016; He et al., 2018; Denton and Fergus, 2018; Zhu et al., 2020). Like our model, these approaches aim to infer latent variables with temporal structure, but they use an input reconstruction criterion.

Our clustering module is related to the literature on online mixture models, e.g., Carpenter and Grossberg (1987); Anderson (1991); Bottou and Bengio (1995); Song and Wang (2005); Hughes and Sudderth (2013); Pinto and Engel (2015). Typically, these are designed for fast and incremental learning of clusters without having to recompute clustering over the entire dataset. Despite presenting a similar online clustering algorithm, our goal is to jointly learn both online clusters and input representations that facilitate future online clustering episodes.

Our model can recognize new classes with only one or a few examples. Our prototype-based memory is also inspired by the Prototypical Network and its variants (Snell et al., 2017; Allen et al., 2019; Ren et al., 2021). Few-shot methods can reduce or remove reliance on class labels using semi- and self-supervised learning (Ren et al., 2018; Huang et al., 2019; Hsu et al., 2019; Gidaris et al., 2019; Antoniou and Storkey, 2019; Khodadadeh et al., 2019; Medina et al., 2020).

Classical few-shot learning, however, relies on episodes of equal number of training and test examples from a fixed number of new classes. Gidaris and Komodakis (2018); Triantafillou et al. (2020); Tao et al. (2020); Zhu et al. (2021) consider extending the standard episodes with incremental learning and varying number of examples and classes. Ren et al. (2021) proposed a new setup that incrementally accumulates new classes and re-visits old classes over a sequence of inputs. We evaluate our algorithm on a similar setup; however, unlike that work, our proposed algorithm does not rely on any class labels.

Our work is related to human learning settings and online clustering models from cognitive science (Carpenter and Grossberg, 1987; Fisher et al., 1991; Anderson, 1991; Love et al., 2004; Murphy, 2004; Lake et al., 2009). These models assume a known, fixed representation of inputs. In contrast, our model learns both representations and categories in an end-to-end fashion.

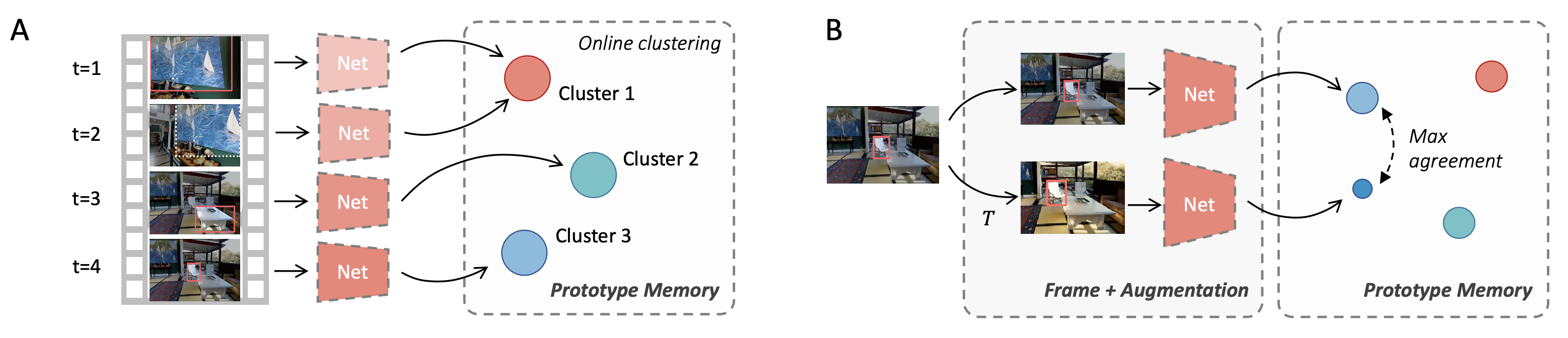

Throughout our experiments, we make two changes to the model inference procedure defined above. First, we use cosine similarity instead of negative squared Euclidean distance for computing the mixture logits, because cosine similarity is bounded and is found to be more stable to train. Second, when we perform cluster inference, we treat the mixing coefficients $w_k$ as constant and uniform as otherwise we find that the representations may collapse into a single large cluster. ¹¹1Our source code is released at: https://github.com/renmengye/online-unsup-proto-net.

During evaluation we present our model a sequence of all new images (unlabeled or labeled) and we would like to see how well it produces a successful grouping of novel inputs. The class label index starts from zero for each sequence, and the classes do not overlap with the training set. The model memory is reset at the beginning of each sequence.

In unsupervised readout, the model directly predicts the label for each image, i.e. the model $g$ directly predicts ${\hat{y}}_t=g\left(x_{1:t}\right)$. In supervised readout (for evaluation only), the model has access to all labels up to time step $t-1$, and needs to predict the label for the $t$-th image, i.e. ${\hat{y}}_t=g(x_{1:t},y_{1:t-1})$. We used the following metrics to evaluate the quality of the grouping of test sequences:

• Adjusted mutual information (AMI): In the unsupervised setting, we use the mutual information metric to evaluate the similarity between our prediction $\{{\hat{y}}_1,\dots ,{\hat{y}}_T\}$ the groundtruth class ID $\{y_1,\dots ,y_T\}$. Since the online greedy clustering method admits a threshold parameter $\alpha$ to control the number of output clusters, therefore for each model we sweep the value of $\alpha$ to maximize the AMI score, to make the score threshold-invariant: ${AMI}_{max}={max}_{\alpha }AMI(y,\hat{y}(\alpha \left)\right).$ The maximization of $\alpha$ can be thought of as part of the readout procedure, and it is designed to particularly help other self-supervised learning baselines since their feature similarity functions are not necessarily calibrated for clustering.

• Average precision (AP): In the supervised setting, we followed the evaluation procedure in Ren et al. (2021) and used average precision, which combines both accuracy for predicting known classes as well as unknown ones.

A popular protocol to evaluate self-supervised representation learning is to use a classifier trained offline on top of the representations to perform semantic class readout. Because AMI and AP are designed to evaluate novel instance classification, we included offline evaluation protocols for semantic classes. We considered the following classifiers:

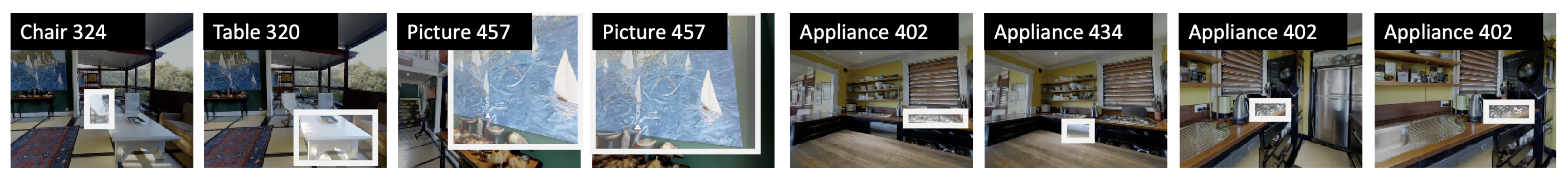

• Nearest neighbor readout: A common protocol is to use a k-nearest-neighbor classifier to readout the learned representations. For RoamingRooms we set $k=39$ and for SAYCam we set $k=1$.

• Linear readout: Another popular protocol is to train a linear classifier on top of the learned representations to a given set of semantic classes. For RoamingRooms, we used the Adam optimizer with learning rate ${10}^{-3}$ for 20 epochs, and for SAYCam, we used the SGD optimizer with learning rate searched among {1.0, 0.1, 0.01} for each model for 100 epochs.

Our focus is online unsupervised visual representation learning. There are very few existing methods developed for this setting. To the best of our knowledge, continual unsupervised learning (Rao et al., 2019) (CURL) is the only directly comparable work, but this method relies on input reconstruction and scales poorly to more general environments. We include the comparison to CURL in the Appendix (Table 11). Unsupervised few-shot learning approaches are also related (Khodadadeh et al., 2019; Medina et al., 2020), but these methods are directly related to standard self-supervised learning methods. Therefore we compare OUPN with the following competitive self-supervised visual representation learning methods.

• SimCLR (Chen et al., 2020a) is a contrastive learning method with an instance-based objective that tries to classify an image instance among other augmented views of the same batch of instances. It relies on a large batch size and is often trained on well-curated datasets such as ImageNet (Deng et al., 2009).

• SwAV (Caron et al., 2020) is a contrastive learning method with a clustering-based objective. It has a stronger performance than SimCLR on ImageNet. The clustering is achieved through Sinkhorn-Knopp which assumes balanced assignment, and prototypes are learned by gradient descent.

• SwAV+Queue is a SwAV variant with an additional example queue. This setup is proposed in Caron et al. (2020) to deal with small training batches. A feature queue that accumulates instances across batches allows the clustering process to access more data points. The queue size is set to 2000.

• SimSiam (Chen and He, 2021) is a self-supervised learning method that does not require negative samples. It uses a stop-gradient mechanism and a predictor network to make sure the representations do not collapse. Through not using negative samples, SimSiam could be immune to treating images of the same instances as negative samples.

For fair comparison on online representation learning, all of the above methods are trained on the same dataset using the same input data as our model, instead of using their pretrained checkpoints from ImageNet.

Since none of these competitive methods are designed to output classes with a few examples, we need an additional clustering-based readout procedure to compute AMI and AP scores. We use a simple online greedy clustering procedure for these methods. For each timestep, it searches for the closest prototype; in unsupervised mode, if it fails with ${\hat{u}}_t$ greater than $\alpha$, it will create a new prototype, and otherwise it will aggregate the current embedding to the cluster centroid. As explained above, the $\alpha$ parameter is maximized for each model on its test scores to optimize performance.
