Wandering Within a World:
Online Contextualized Few-Shot Learning

FSL (Lake et al., 2015; Li et al., 2007; Koch et al., 2015; Vinyals et al., 2016) considers learning new tasks with few labeled examples. FSL models can be categorized as based on: metric learning (Vinyals et al., 2016; Snell et al., 2017), memory (Santoro et al., 2016), and gradient adaptation (Finn et al., 2017; Li et al., 2017). The model we propose, CPM, lies on the boundary between these approaches, as we use an RNN to model the temporal context but we also use metric-learning mechanisms and objectives to train.

Several previous efforts have aimed to extend few-shot learning to incorporate more natural constraints. One such example is semi-supervised FSL (Ren et al., 2018), where models also learn from a pool of unlabeled examples. While traditional FSL only tests the learner on novel classes, incremental FSL (Gidaris and Komodakis, 2018; Ren et al., 2019) tests on novel classes together with a set of base classes. These approaches, however, have not explored how to iteratively add new classes.

In concurrent work, Antoniou et al. (2020) extend FSL to a continual setting based on image sequences, each of which is divided into stages with a fixed number of examples per class followed by a query set. It focuses on more flexible and faster adaptation since the models are evaluated online, and the context is a soft constraint instead of a hard separation of tasks. Moreover, new classes need to be identified as part of the sequence, crucial to any learner’s incremental acquisition of knowledge.

Continual (or lifelong) learning is a parallel line of research that aims to handle a sequence of dynamic tasks (Kirkpatrick et al., 2017; Li and Hoiem, 2018; Lopez-Paz and Ranzato, 2017; Yoon et al., 2018). A key challenge here is catastrophic forgetting (McCloskey and Cohen, 1989), where the model “forgets” a task that has been learned in the past. Incremental learning (Rebuffi et al., 2017; Castro et al., 2018; Wu et al., 2019; Hou et al., 2019; He et al., 2020) is a form of continual learning, where each task is an incremental batch of several new classes. This assumption that novel classes always come in batches seems unnatural.

Traditionally, continual learning is studied with tasks such as permuted MNIST (Lecun et al., 1998) or split-CIFAR (Krizhevsky, 2009). Recent datasets aim to consider more realistic continual learning, such as CORe50 (Lomonaco and Maltoni, 2017) and OpenLORIS (She et al., 2019). We summarize core features of these continual learning datasets in Appendix A. First, both CORe50 and OpenLORIS have relatively few object classes, which makes meta-learning approaches inapplicable; second, both contain images of small objects with minimal occlusion and viewpoint changes; and third, OpenLORIS does not have the desired incremental class learning.

In concurrent work, Caccia et al. (2020) proposes a setup to unify continual learning and meta-learning with a similar online evaluation procedure. However, there are several notable differences. First, their models focus on a general loss function without a specific design for predicting new classes; they predict new tasks by examining if the loss of exceeds some threshold. Second, the sequences of inputs are fully supervised. Lastly, their benchmarks are based on synthetic task sequences such as Omniglot or tiered-ImageNet, which are less naturalistic than our RoamingRooms dataset.

Some existing work builds on early approaches (Thrun, 1998; Schmidhuber, 1987) that tackle continual learning from a meta-learning perspective. Finn et al. (2019) proposes storing all task data in a data buffer; by contrast, Javed and White (2019) proposes to instead learn a good representation that supports such online updates. In Jerfel et al. (2019), a hierarchical Bayesian mixture model is used to address the dynamic nature of continual learning.

Our CPM model consists of multiple memory systems, consistent with claims of cognitive neuroscientists of multiple memory systems in the brain. The complementary learning systems (CLS) theory (McClelland et al., 1995) suggests that the hippocampus stores the recent experience and is likely where few-shot learning takes place. However, our model is more closely related to contextual binding theory (Yonelinas et al., 2019), which suggests that long-term encoding of information depends on binding spatiotemporal context, and without this context as a cue, forgetting occurs. Our proposed CPM contains parallels to human brain memory components (Cohen and Squire, 1980). Long term statistical learning is captured in a CNN that produces a deep embedding. An RNN holds a type of working memory that can retain novel objects and spatiotemporal contexts. Lastly, the prototype memory represents the semantic memory, which consolidates multiple events into a single knowledge vector (Duff et al., 2020). Other deep learning researchers have proposed multiple memory systems for continual learning. In Parisi et al. (2018), the learning algorithm is heuristic and representations come from pretrained networks. In Kemker and Kanan (2018), a prototype memory is used for recalling recent examples and rehearsal from a generative model allows this knowledge to be integrated and distilled into a long-term memory.

In traditional few-shot learning, an episode is constructed by a support set $S$ and a query set $Q$. A few-shot learner $f$ is expected to predict the class of each example in the query set $x^Q$ based on the support set information: ${\hat{y}}^Q=f(x^Q;(x_1^S,y_1^S),\dots ,(x_N^S,y_N^S\left)\right)$, where $x\in R^D$, and $y\in [1\dots K]$. This setup is not a natural fit for continual learning, since it is unclear when to insert a query set into the sequence.

Inspired by the online learning literature, we can convert continual few-shot learning into a sequential decision problem, where every input example is also part of the evaluation: ${\hat{y}}_t=f(x_t;(x_1,{\tilde{y}}_1),\dots ,(x_{t-1},{\tilde{y}}_{t-1}\left)\right)$, for $t=1\dots T$, where $\tilde{y}$ here further allows that the sequence of inputs to be semi-supervised: $\tilde{y}$ equals $y_t$ if labeled, or otherwise $-1$. The setup in Santoro et al. (2016) and Kaiser et al. (2017) is similar; they train RNNs using such a temporal sequence as input. However, their evaluation relies on a “query set” at the end. We instead evaluate online while learning.

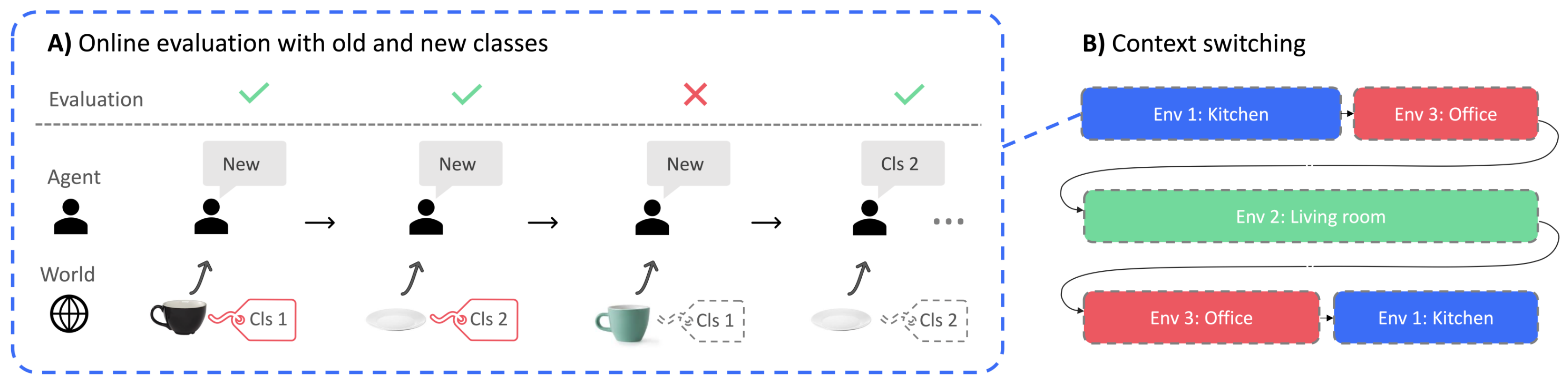

Figure 1-A illustrates these features, using an example of an input sequence where an agent is learning about new objects in a kitchen. The model is rewarded when it correctly predicts a known class or when it indicates that the item has yet to be assigned a label.

Typical continual learning consists of a sequence of tasks, and models are trained sequentially for each task. This feature is also preserved in many incremental learning settings (Rebuffi et al., 2017). For instance, the split-CIFAR task divides CIFAR-100 into 10 learning environments, each with 10 classes, presented sequentially. In our formulation, the sequence returns to earlier environments (see Figure 1-B), which enables assessment of long-term durability of knowledge. Although the ground-truth environment identity is not provided, we structure the task such that the environment itself provides contextual cues which can constrain the correct class label. Spatial cues in the input help distinguish one environment from another. Temporal cues are implicit because the sequence tends to switch environments infrequently, allowing recent inputs to be beneficial in guiding the interpretation of the current input.

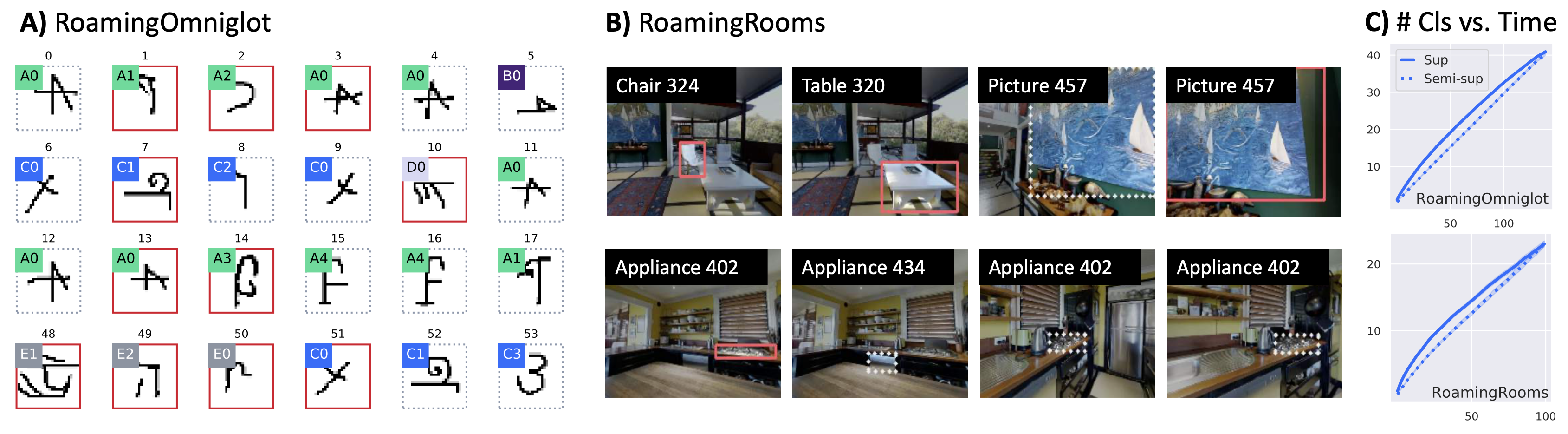

The Omniglot dataset (Lake et al., 2015) contains 1623 handwritten characters from 50 different alphabets. We split the alphabets into 31 for training, 5 for validation, and 13 for testing. We augment classes by 90 degree rotations to create 6492 classes in total. Each contextualized few-shot learning image sequence contains 150 images, drawn from a random sample of 5-10 alphabets, for a total of 50 classes per sequence. These classes are randomly assigned to 5 different environments; within an environment, the characters are distributed according to a Chinese restaurant process (Aldous, 1985) to mimic the imbalanced long-tail distribution of naturally occurring objects. We switch between environments using a Markov switching process; i.e., at each step there is a constant probability of switching to another environment. An example sequence is shown in Figure 2-A.

As none of the current few-shot learning datasets provides the natural online learning experience that we would like to study, we created our own dataset using simulated indoor environments. We formulate this as a few-shot instance learning problem, which could be a use case for a home robot: it needs to quickly recognize and differentiate novel object instances, and large viewpoint variations can make this task challenging (see examples in Figure 2-B). There are over 7,000 unique instance classes in the dataset, making it suitable to meta-learning approaches.

Our dataset is derived from the Matterport3D dataset (Chang et al., 2017) with 90 indoor worlds captured using panoramic depth cameras. We split these into 60 worlds for training, 10 for validation and 20 for testing. MatterSim (Anderson et al., 2018) is used to load the simulated world and collect camera images and HabitatSim (Savva et al., 2019) is used to project instance segmentation labels onto 2D image space. We created a random walking agent to collect the virtual visual experience. For each viewpoint in the random walk, we randomly sample one object from the image sensor and highlight it with the available instance segmentation, forming an input frame. Each viewpoint provides environmental context—the other objects present in the room with the highlighted object.

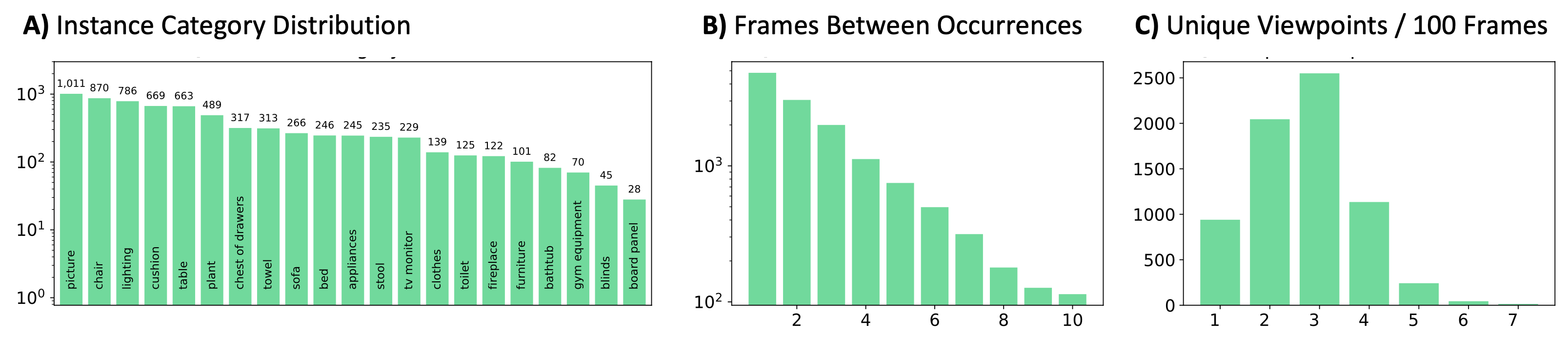

Figure 3-A shows the object instance distribution. We see strong temporal correlation, as 30% of the time the same instance appears in the next frame (Figure 3-B), but there is also a significant proportion of revisits. On average, there are three different viewpoints per 100-image sequence (Figure 3-C). Details and other statistics of our proposed datasets are included in the Appendix.

To make the classification problem more challenging, we also report results on RoamingImageNet, which uses the same online sequence sampler as RoamingOmniglot but applied on the tiered-ImageNet dataset (Ren et al., 2018), a subset of the original ImageNet dataset (Russakovsky et al., 2015). It contains 608 classes with a total of 779K images of size 84$\times$84. We use the same split of classes as Ren et al. (2018). The high-level categories are used for sampling different “environments” just like the notion of alphabets in RoamingOmniglot.

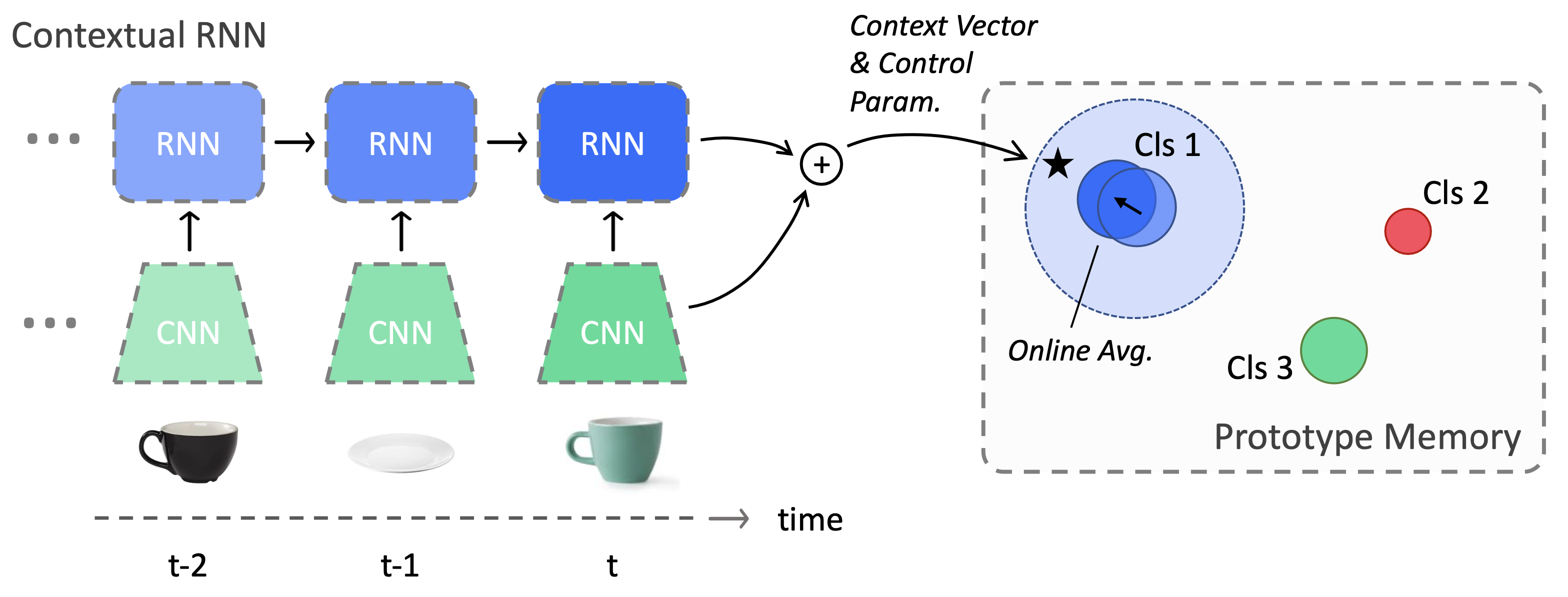

We start describing our model with the prototype memory, which is an online version of the Prototypical Network (or ProtoNet) (Snell et al., 2017). ProtoNet can be viewed as a knowledge base memory, where each object class $k$ is represented by a prototype vector $p\left[k\right]$, computed as the mean vector of all the support instances of the class in a sequence. It can also be applied to our task of online few-shot learning naturally, with some modifications. Suppose that at time-step $t$ we have already stored a few classes in the memory, each represented by their current prototype $p_t\left[k\right]$, and we would like to query the memory using the input feature $h_t$. We model our prototype memory as ${\hat{y}}_{t,k}=softmax(-d_{m_t}(h_t,p_t\left[k\right]\left)\right)$, (e.g. squared Euclidean distance or cosine dissimilarity) parameterized by a vector $m_t$ that scales each dimension with a Hadamard product. To predict whether an example is of a new class, we can use a separate novelty output ${\hat{u}}_t^r$ with sigmoid activation, similar to the approach introduced in Ren et al. (2018), where ${\beta }_t^r$ and ${\gamma }_t^r$ are yet-to-be-specified thresholding hyperparameters (the superscript $r$ stands for read):

Traditionally, ProtoNet uses the average representation of a class across all support examples. Here, we must be able to adapt the prototype memory incrementally at each step. Fortunately, we can recover the computation of a ProtoNet by performing a simple online averaging:

where $h$ is the input feature, and $p$ is the prototype, and $c$ is a scalar indicating the number of examples that have been added to this prototype up to time $t$. The online averaging function $A$ can also be made more flexible to allow more plasiticity, modeled by a gated averaging unit (GAU):

When the current example is unlabeled, ${\tilde{y}}_t$ is encoded as $-1$, and the model’s own prediction ${\hat{y}}_t$ will determine which prototype to update; in this case, the model must also determine a strength of belief, ${\hat{u}}_t^w$, that the current unlabeled example should be treated as a new class. Given ${\hat{u}}_t^w$ and ${\hat{y}}_t$, the model can then update a prototype:

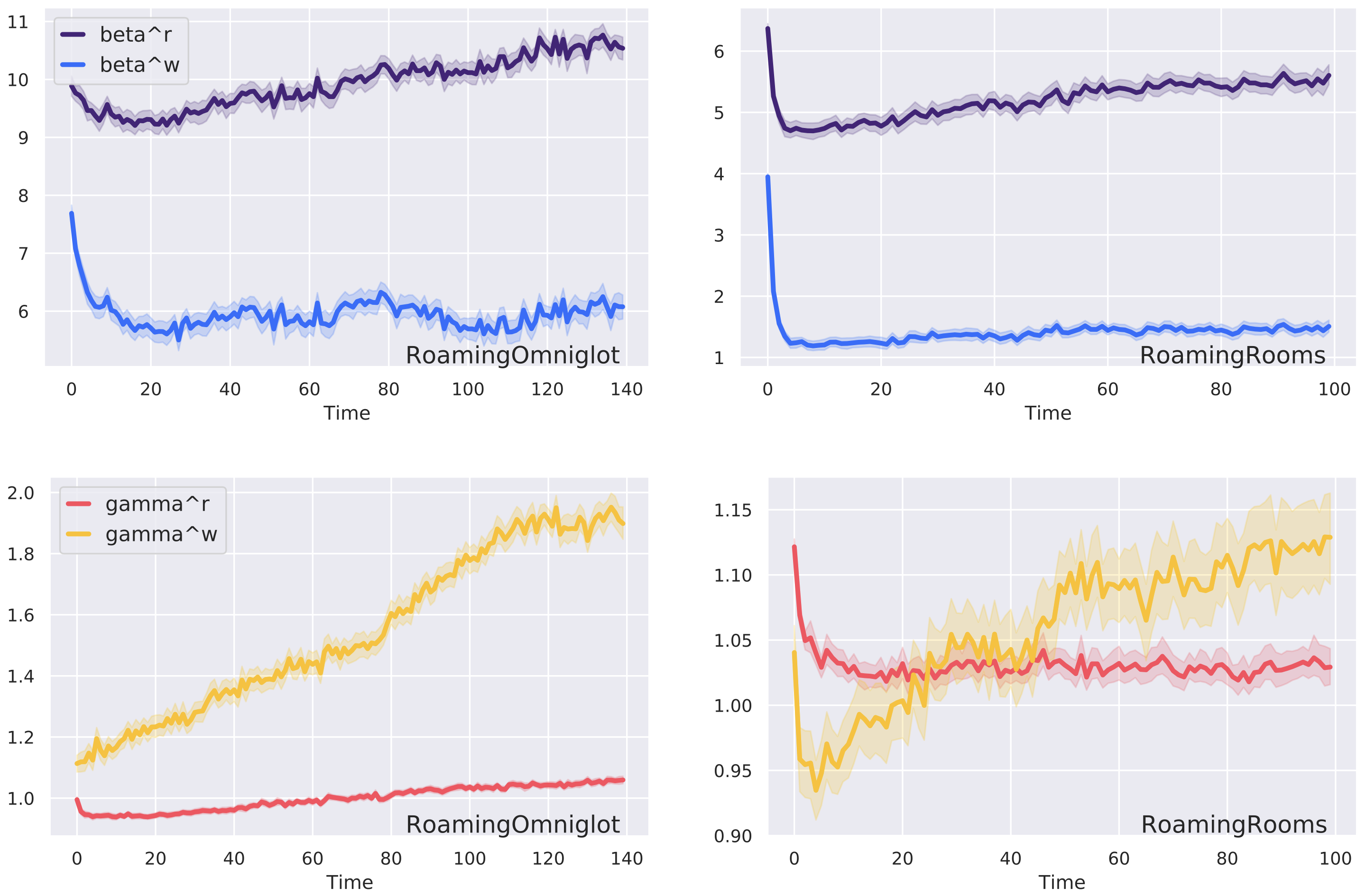

As-yet-unspecified hyperparameters ${\beta }_t^w$ and ${\gamma }_t^w$ are required (the superscript $w$ is for write). These parameters for the online-updating novelty output ${\hat{u}}_t^w$ are distinct from ${\beta }_t^r$ and ${\gamma }_t^r$ in Equation 1. The intuition is that for “self-teaching” to work, the model potentially needs to be more conservative in creating new classes (avoiding corruption of prototypes) than in predicting an input as being a new class.

Instead of directly using the features from the CNN $h_t^{\text{CNN}}$ as input features to the prototype memory, we would also like to use contextual information from the recent past. Above we introduced threshold hyperparameters ${\beta }_t^r$, ${\gamma }_t^r$, ${\beta }_t^w$, ${\gamma }_t^w$ as well as the metric parameter $M_t$. We let the contextual RNN output these additional control parameters, so that the unknown thresholds and metric function can adapt based on the information in the context. The RNN produces the context vector $h_t^{\text{RNN}}$ and other control parameters conditioned on $h_t^{\text{CNN}}$:

where $z_t$ is the recurrent state of the RNN, and $m_t$ is the scaling factor in the dissimilarity score. The context, $h_t^{\text{RNN}}$, serves as an additive bias on the state vector used for FSL: $h_t=h_t^{\text{CNN}}+h_t^{\text{RNN}}$. This addition operation in the feature space can help contextualize prototypes based on temporal proximity, and is also similar to how the human brain leverages spatiotemporal context for memory storage (Yonelinas et al., 2019).

The loss function is computed after an entire sequence ends and all network parameters are learned end-to-end. The loss is composed of two parts. The first is binary cross-entropy (BCE), for telling whether each example has been assigned a label or not, i.e., prediction of new classes, and $u_t$ is the ground-truth binary label. Second we use a multi-class cross-entropy for classifying among the known ones. We can write down the overall loss function as follows:

During training, we sample learning sequences and for each sequence, we perform one iterative update to minimize the loss function (Eq. 9). At the beginning of each sequence, the memory is reset. During training, the model learns from a set of training classes. During test time, the model recognizes new classes that have never been seen during training.

For RoamingOmniglot, we use the common 4-layer CNN for few-shot learning with 64 channels in each layer. For RoamingImageNet, we also use ResNet-12 with input resolution 84$\times$84 (Oreshkin et al., 2018). For the RoamingRooms, we resize the input to 120$\times$160 and use ResNet-12. To represent the feature of the input image with an attention mask, we concatenate the global average pooled feature with the attention ROI feature, resulting in a 512d feature vector. For the contextual RNN, in both experiments we used an LSTM (Hochreiter and Schmidhuber, 1997) with a 256d hidden state. The best CPM model is equipped using GAU and cosine similarity for querying prototypes. Logits based on cosine similarity are multiplied with a learned scalar initialized at 10.0 (Oreshkin et al., 2018). We include additional training details in Appendix B.

In order to compute a single number that characterizes the learning ability over sequences, we propose to use average precision (AP) to evaluate both with respect to old versus new and the specific class predictions. Concretely, all predictions are sorted by their old vs. new scores, and we compute AP using the area under the precision-recall curve. A true positive is defined as the correct prediction of a multi-class classification among known classes. We also compute the “$N$-shot” accuracy; i.e., the average accuracy after seeing the label $N$ times in the sequence. Note that these accuracy scores only reflect the performance on known class predictions. All numbers are reported with an average over 2,000 sequences and for $N$-shot accuracy standard error is also included. Further explanation of these metrics is in Appendix A.3.

To evaluate the merits of our proposed model, we implement classic few-shot learning and online meta-learning methods. More implementation and training details of these baseline methods can be found in Appendix B.

• OML (Javed and White, 2019): This is an online version of MAML (Finn et al., 2017). It performs one gradient descent step for each labeled input image, and slow weights are learned via backpropagation through time. On top of OML, we added an unknown predictor ${\hat{u}}_t=1-{max}_k{\hat{y}}_{t,k}$ ²²2We tried a few other ways and this is found to be the best. (OML-U). We also found that using cosine classifier without the last layer ReLU is usually better than using the original dot-product classifier, and this improvement is denoted as OML-U++.

• LSTM (Hochreiter and Schmidhuber, 1997) & DNC (Graves et al., 2016): We include RNN methods for comparison as well. Differentiable neural computer (DNC) is an improved version of memory augmented neural network (MANN) (Santoro et al., 2016).

• Online MatchingNet (O-MN) (Vinyals et al., 2016), IMP (O-IMP) (Allen et al., 2019) & ProtoNet (O-PN) (Snell et al., 2017): We used the same negative Euclidean distance as the similarity function for these three metric learning based approaches. In particular, MatchingNet stores all examples and performs nearest neighbor matching, which can be memory inefficient. Note that Online ProtoNet is a variant of our method without the contextual RNN.

Our main results are shown in Table 1, 2 and 3, including both supervised and semi-supervised settings. Our approach achieves the best performance on AP consistently across all settings. Online ProtoNet is a direct comparison without our contextual RNN and it is clear that CPM is significantly better. Our method is slightly worse than Online MatchingNet in terms of 3-shot accuracy on the RoamingRooms semisupervised benchmark. This can be explained by the fact that MatchingNet stores all past seen examples, whereas CPM only stores one prototype per class. Per timestep accuracy is plotted in Figure 5, and the decaying accuracy is due to the increasing number of classes over time. In RoamingOmniglot, CPM is able to closely match or even sometimes surpass the offline classifier, which re-trains at each step and uses all images in a sequence except the current one. This is reasonable as our model is able to leverage information from the current context.

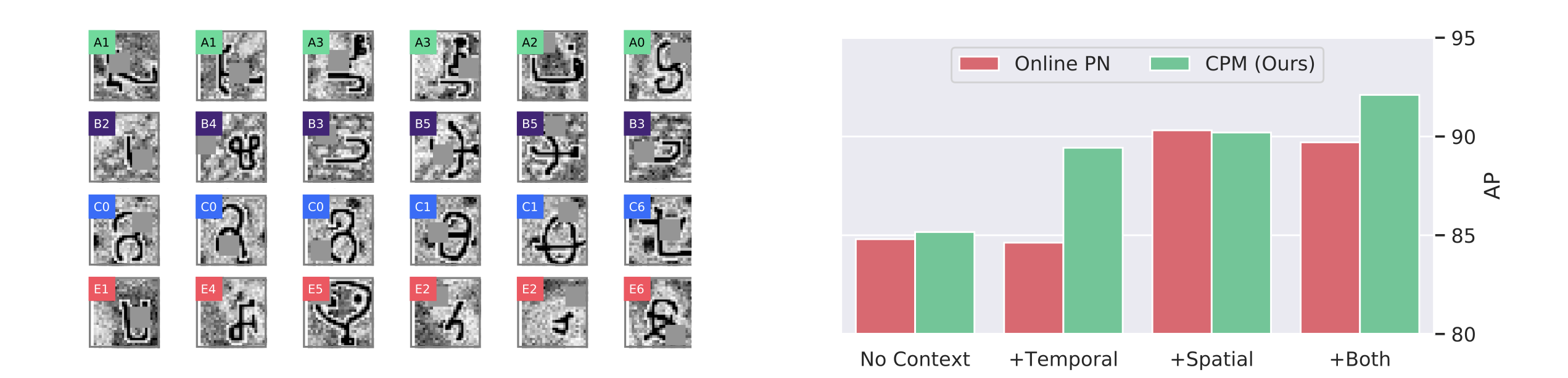

To answer the question whether the gain in performance is due to spatiotemporal reasoning, we conduct the following experiment comparing CPM with online ProtoNet. We allow the CNN to have the ability to recognize the context in RoamingOmniglot by adding a texture background image using the Kylberg texture dataset (Kylberg, 2011) (see Figure 6 left). As a control, we can also destroy the temporal context by shuffling all the images in a sequence. We train four different models on dataset controls with or without the presence of spatial or temporal context, and results are shown in Figure 6. First, both online ProtoNet and CPM benefit from the inclusion of a spatial context. This is understandable as the CNN has the ability to learn spatial cues, which re-confirms our main hypothesis that successful inference of the current context is beneficial to novel object recognition. Second, only our CPM model benefits from the presence of temporal context, and it receives distinct gains from spatial and temporal contexts.

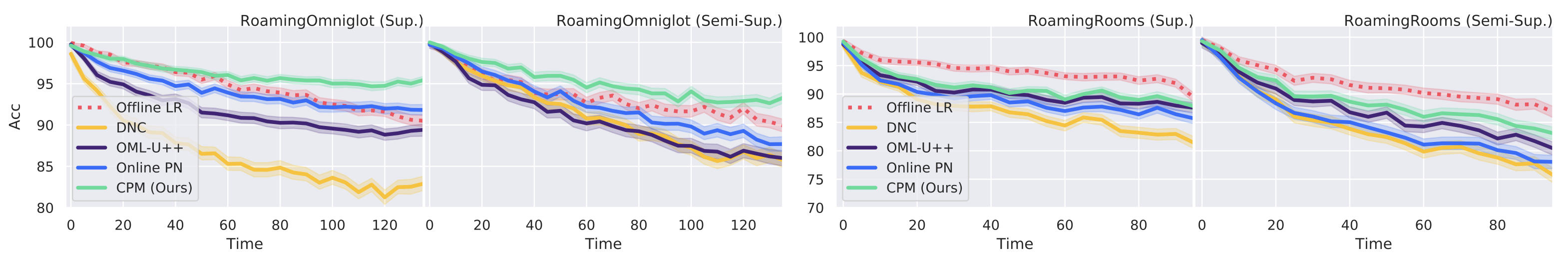

As the number of learned classes increases, we expect the average accuracy to drop. To further investigate this forgetting effect, we measure the average accuracy in terms of the number of time steps the model has last seen the label of a particular class. It is reported in Table 4 and in Appendix C Table 13, 14, where we directly compare CPM and OPN to see the effect of temporal context. CPM is significantly better than OPN on 1-shot within a short interval, which suggests that the contextual RNN makes the recall of the recent past much easier. On RoamingImageNet, OPN eventually surpasses CPM on longer horizon, and this can be explained by the fact that OPN has more stable prototypes, whereas prototypes in CPM could potentially be affected by the fluctuation of the contextual RNN over a longer horizon.

We ablate each individual module we introduce. Results are shown in Tables 5 and 6. Table 5 studies different ways we use the RNN, including the context vector $h^{\text{RNN}}$, the predicted threshold parameters ${\beta }_t^{\ast },{\gamma }_t^{\ast }$, and the predicted metric scaling vector $m_t$. Table 6 studies various ways to learn from unlabeled examples, where we separately disable the RNN update, prototype update, and distinct write-threshold parameters ${\beta }_t^w,{\gamma }_t^w$ (vs. using read-threshold parameters), which makes it robust to potential mistakes made in semi-supervised learning. We verify that each component has a positive impact on the performance.
